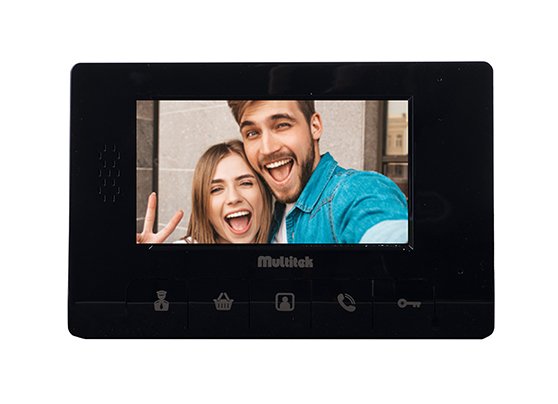

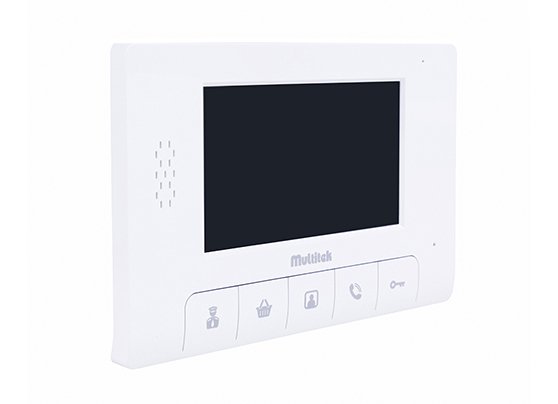

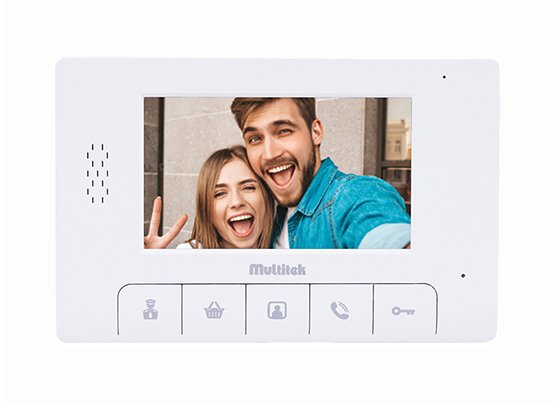

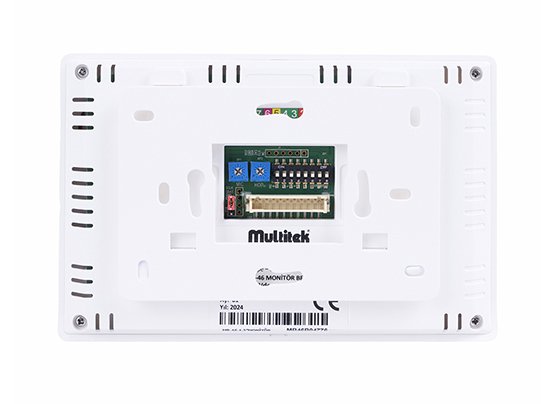

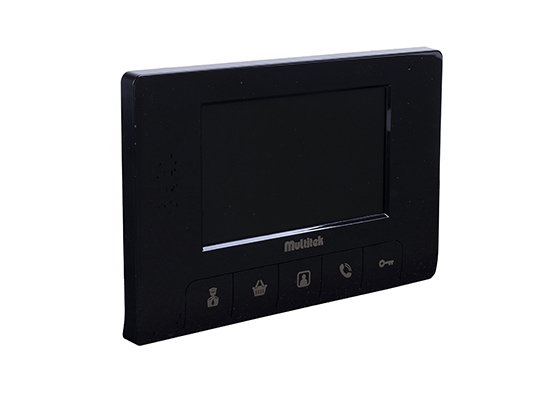

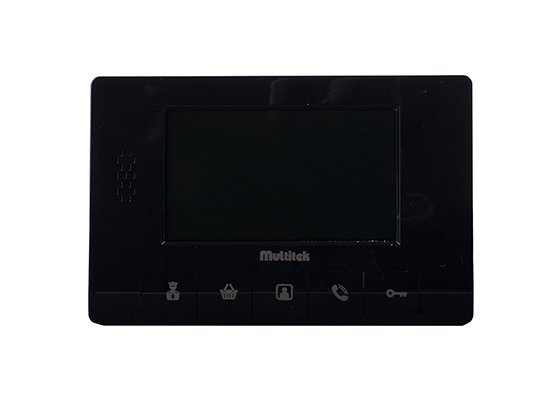

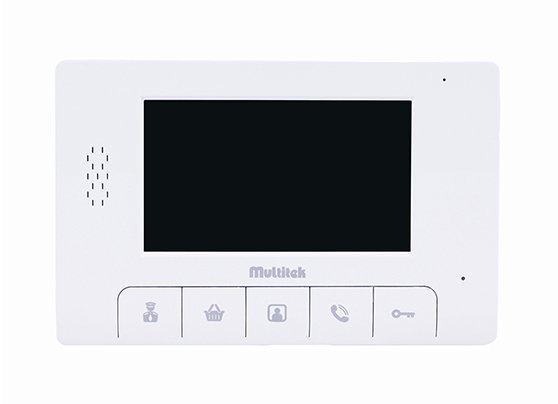

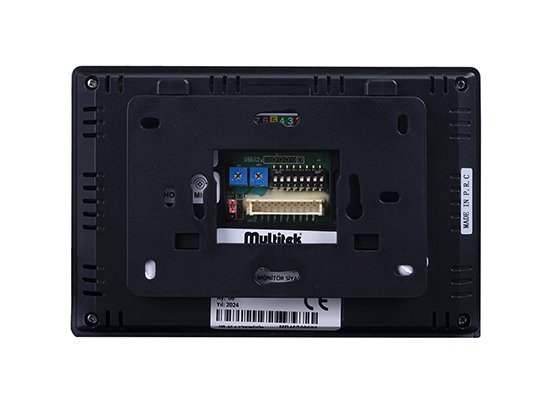

MB-46 Room Monitor

Product Description

4.3" screen, hands-free monitor





More
Product Videos

Video intercom system for your familys safety

  • Open the door by observing who is coming, without any hesitation,by Specific design, for unexpected do not think over on it, guests with the Multibus Video Doorphone System, and excellent image and sound quality!

  • Low energy consuming system suitable for green buildings

  • Advanced intercom features

  • Video calling with camera door panels

  • Door camera and external camera monitoring feature

  • Connect to security, apartment staff and social facilities

Private apartment entrance password for the apartment

  • For your safety, stop using apartment entrance passwords that are easy to guess and that even intruders know. Via multibus system, each apartment uses its own specific password and the residents stay safe.

  • The password is changed by performing simultaneous operations on the apartment monitor and door panel. The password cannot be changed only via the door panel.

  • The system restricts the use of easily guessable and repetitive passwords such as 1234, 1923, 1453.

  • There is no password from manufacturing new products, a password must be set during installation.

Unique design system with original design and features

  • Via multibus system, each flat can use a different intercom type.

  • 4.3” and 7” wide screen options

  • Touch button and touch screen options

  • Excellent picture and sound quality

  • Flat residents who do not need a video monitor can also use a non-video flat device in the same system.

Card and password access option on door panels

  • User friendly readable screen

  • Card and password pass options

  • Rain protecto, miscellaneous accessories

  • Reliable video doorbell systems

  • MB-12 Door panel was designed by Multitek R&D Center to have IP65 dust and water protection level. In this way, moisture, dust and liquid contact do not affect the operating performance of the door panel.

Doable installation and easy wiring structure

  • System installation is very easy, whether it is a single flat or a multi-building site. The installation and installation workers can install the system alone, no additional adjustments are needed.

  • It works with the existing cabling installed in the building or with the newly installed  CAT5/CAT6  cable.

  • There is no need for ringer return cables or coaxial cable for image transmission.

  • When two-channel voice connection is not sufficient, the number of speech channels can be increased by adding a exchange unit to the system, thus connecting the desired number of security and social facility phones.

  • Easy doorphone maintenance and fast doorphone service

  • 4.3" high resolution TFT LCD screen
  • Automatic talk (push to talk, not let to listen)
  • 5 ringtones to choose
  • Only 18 mm depth
  • Easy wiring and installation
  • Multiple camera monitoring feature
  • Compatible with old installations installed in the building
  • Environmentally friendly, consumes little energy
  • Talk to door/ janitor button
  • Button for open the door, watch the door camera



  Screen

 4.3” TFT LCD

  Resolution

 480x272

  Backlight

 LED

  Network Connection Cabling

 DT-8, CAT5/CAT6 or 5 cables

  Operating Voltage

 18-24VDC

  Working Current

 250 mA stand-by

  Operating Temperature

 -10, +55°c

  Moisture

 20-95% (non-condensed)

  Assembly

 Surface mount

  Colour

 White, black

  Dimensions

 159x104x22mm

Electrician-friendly installation and easy wiring structure

System installation is very easy, whether it is a single flat or a multi-building site. The installation and installation master can install the system alone, no additional adjustments are needed.

It works with the existing cabling installed in the building or with the newly installed  CAT5/CAT6  cable. There is no need for ringer return cables or coaxial cable for image transmission. When two-channel voice connection is not sufficient, the number of speech channels can be increased by adding a switchboard to the system, thus connecting the desired number of security and social facility phones.

System capacity:

  • The number of flats in a block can be up to 256.
  • The maximum number of blocks on a site can be 32.
  • The maximum number of doors with or without video in the block can be 4.
  • There can be a maximum of 8 elevators in a block.
  • One doorman can be connected to each block.
  • One security guard is allocated to a site, but when more than one is required, security phones can be connected in parallel or the number of security can be increased by connecting a telephone switchboard.
  • Any number of monitors can be connected parallel to the apartments.
